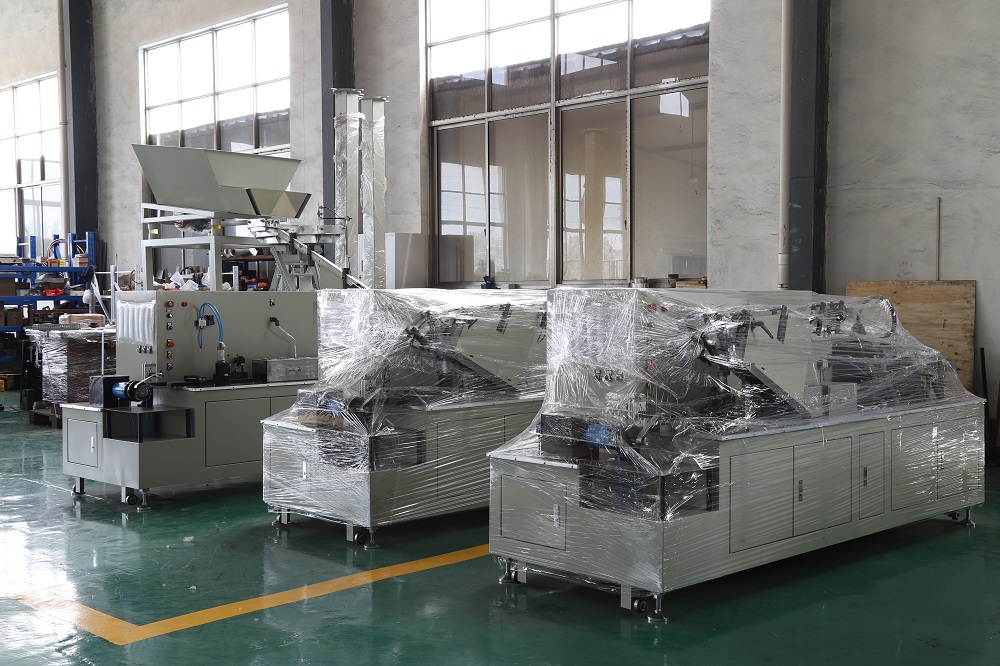

YZDQ-SPD160 Fully Automatic Plastic Nail Machine

YZDQ-SPD160 fully automatic plastic nail machine is an efficient nail-making equipment that uses advanced injection molding technology and is designed specifically for the production of plastic nails (plastic nails). This equipment uses a precision temperature control system and servo drive technology to achieve integrated molding of the metal nail body and the plastic belt. It has the characteristics of high production efficiency, good product consistency, energy saving and environmental protection, and is widely used in construction, furniture, packaging and other industries.

Datasheet:

Get More Information

Advantages of ZPD160

Efficient production
precise technology
stable quality
wide application
cost optimization
convenient operation

Parameter of ZPD160

Working voltage: AC 380
Rated power: 12KW
Air pressure: 5KG/M2
Hot melting temperature: 0-300℃
Angle: 21°-34°
Production quantity: 600-1200pcs/min
Nail length: 50-100-160mm
Nail diameter: 2.5-4.0mm
Dimensions: 4500*2550*2300mm
Weight: 1800KG

A Classic Design for High-Quality Nail Manufacturing

Precision injection molding system, two-color injection molding unit (supports color mixing process), temperature control accuracy ±1℃ (PID intelligent adjustment), in-mold nailing technology (binding force ≥80N).

Intelligent molding system, servo-driven nail feeding (positioning accuracy ±0.03mm), automatic trimming device (waste recovery rate ≥95%), and fast mold change design (completed within 8 minutes).

Advanced control system, industrial touch screen (multi-language interface), IoT remote monitoring, energy management system (real-time monitoring of power consumption).

Safe and environmentally friendly design, fully enclosed soundproof cover (noise ≤ 72dB), exhaust gas purification device, emergency stop button + safety grating.
