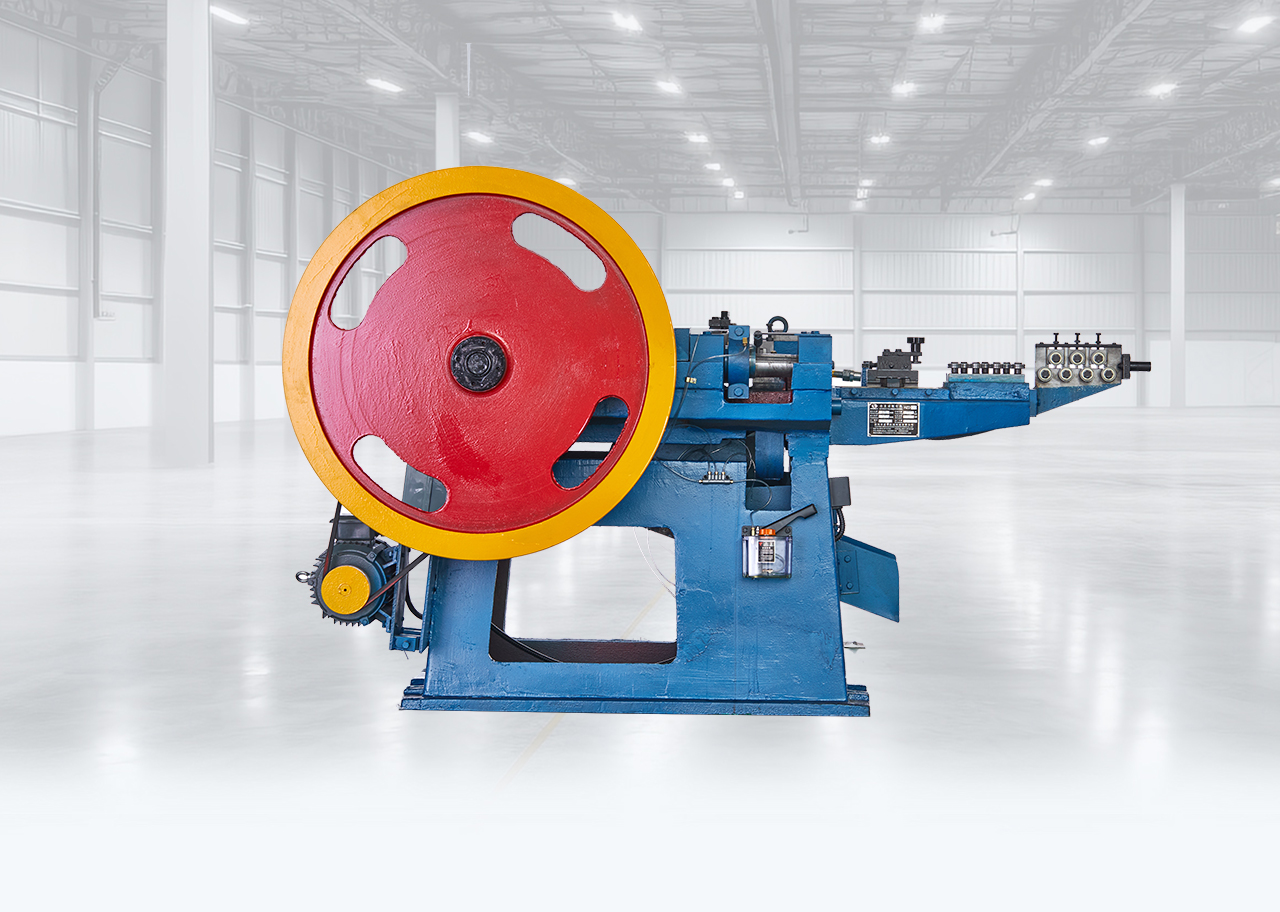

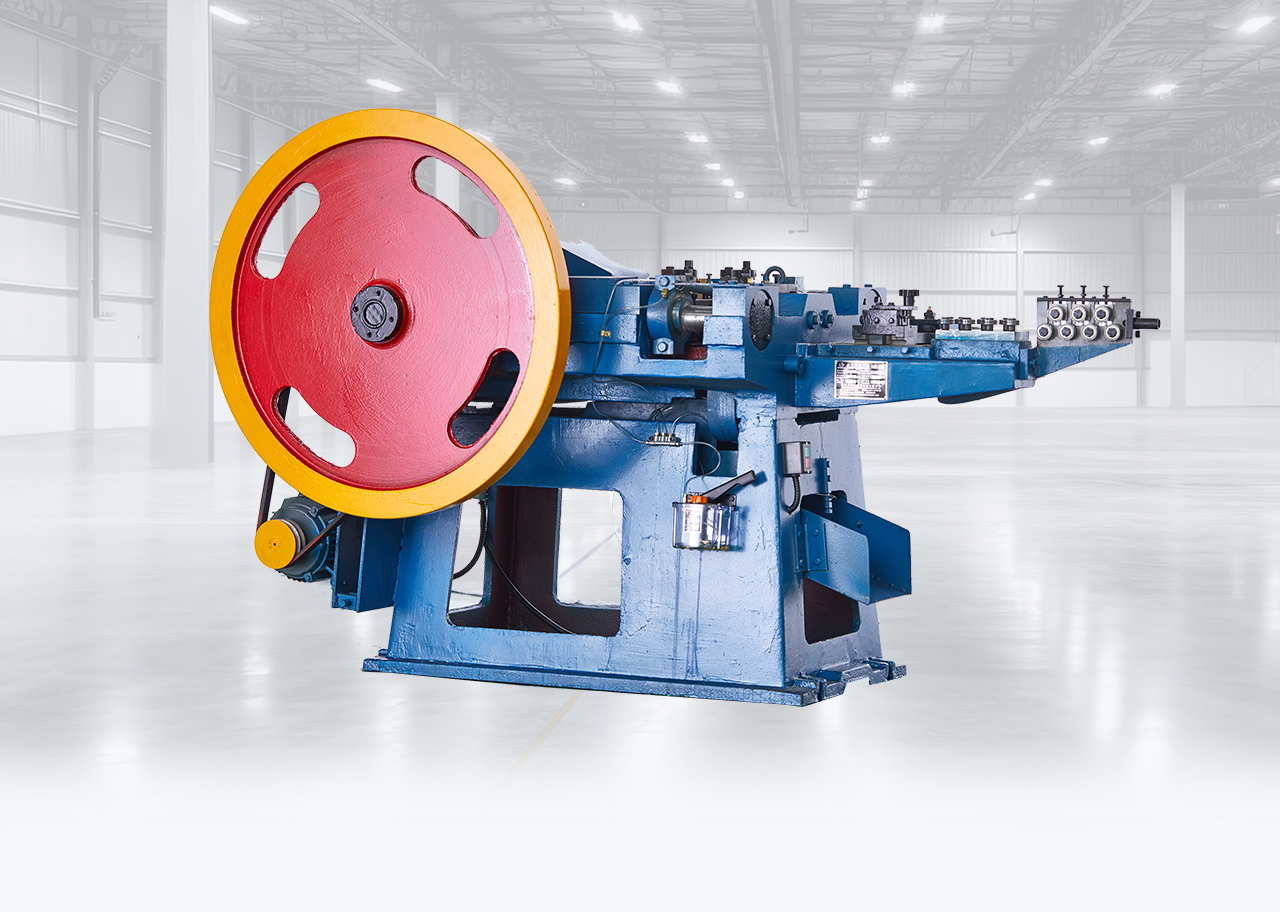

YZDQ-ZD45 Fully Automatic Nail Making Machine

YZDQ-ZD45 Fully Automatic Nail Making Machine

At SPEEDNAIL we know that different nail manufacturers have different requirements, and we want to ensure that we can cater to a wide range of needs. When developing this model of the YZDQ-ZD45, we focused on delivering optimal machine performance for our customers’ investment.

The YZDQ-ZD45 fully automatic nail making machine is an intelligent nail making equipment integrating mechanical, electrical and hydraulic functions. It adopts advanced precision mold technology to realize the full process automation production from metal wire to finished nails. This equipment has the characteristics of high efficiency, high precision and low energy consumption. It is suitable for manufacturing various rod-shaped metal nails such as general-purpose round steel nails (GB349), special steel nails (WJ1674), floor nails, welded coil nails, welded row nails, and rivet rods. If some of the structures are slightly modified, other special metal products such as corrugated nails, double-cap nails, saddle nails, and patch nails can also be manufactured.


Datasheet:

Nail Types
Parameter of ZD45
  • Maximum diameter of nails: 5.0mm

  • Minimum diameter of nails: 2.5mm

  • Maximum length of nails: 140mm

  • Minimum length of nails: 30mm

  • Speed: 180pcs/min

  • Power: 4kw

  • Size: 2280*1420*1330mm

  • Weight: 1900KG

Advantages of ZD45
  • High-precision bearing transmission

  • Modular stamping design

  • High-compatibility nail mold base

  • Precision wire feeding system

  • Intelligent lubrication guarantee

  • Power optimization design

  • High-strength material process

  • Low noise technology

A Classic Design for High-Quality Nail Manufacturing

We have incorporated cutting-edge production technologies in sheet metal bending and machine tooling into the YZDQ-ZD45.

Like the YZDQ-D series models, the machine have an efficient active nail ejection system, pushing and dragging the nails out of the dies and thus ensuring the safe evacuation of all finished nails from the wire nail machine.

However, unlike the YZDQ-D series, the YZDQ-ZD45 does not include the Speedsmart software platform. Another key difference is that tooling ring includes a reduced number of dies, which is a contributing factor in allowing tooling changeovers in the YZDQ-ZD45 machine to be made quickly and easily.
